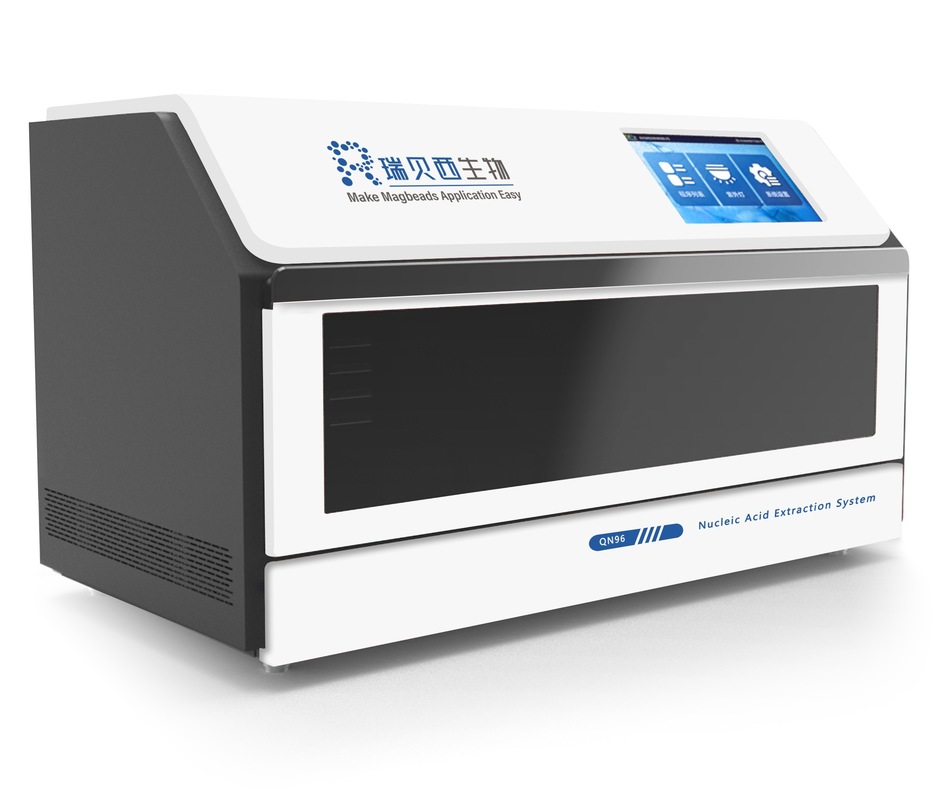

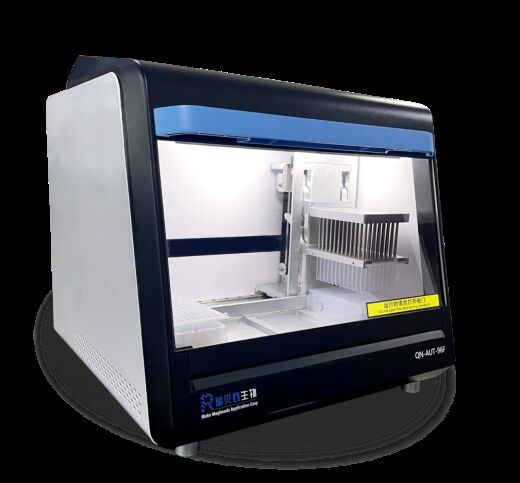

QN-AUT-96MINI Fully Automatic Nucleic Acid Extractor

QN-AUT-96MINI Fully Automatic Nucleic Acid Extractor
QN-AUT-96MINI Fully Automatic Nucleic Acid Extractor

Large Image :  QN-AUT-96MINI Fully Automatic Nucleic Acid Extractor

Product Details:
Place of Origin: China
Brand Name: Rebeads
Certification: ISO 9001, ISO 13485
Model Number: QN-AUT-96MINI
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: 1 set/Carton
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 20sets/day
Contact Now Chat Now

QN-AUT-96MINI Fully Automatic Nucleic Acid Extractor

description
Highlight:

fully automated nucleic acid extraction system

,

96 Channel Nucleic Acid Extraction System

,

Convenient automated nucleic acid extractor

The 96-channel fully automatic nucleic acid extractor adopts the magnetic bead method for nucleic acid extraction and purification. Matching with corresponding reagent kits, it can isolate and purify nucleic acids from various samples such as blood, animal and plant tissues, and cells.

With fully automated operation, stable performance and high processing throughput, the device can purify up to 96 samples simultaneously to meet practical experimental requirements.

Application Scope
  1. Single-run nucleic acid extraction for 96 samples (within 150μL);
  2. Suitable for small-volume sample purification such as PCR product purification.
Item Specification
Product Name QN-AUT-96MINI Fully Automatic Nucleic Acid Extractor
Model QN-AUT-96MINI
Sample Throughput 1–96 samples
Processing Time 10–15 min (depending on sample type and program settings)
Liquid Handling Volume 20–1000μL
Elution Volume 20–100μL
Well-to-Well Variation CV < 3%
Temperature Control Range 0–120℃; Dual-channel temperature control system
Mixing Mode Vertical oscillation with adjustable speed/amplitude in multiple levels
Contamination Control UV lamp, built-in UV disinfection module
Operation Mode 10-inch touchscreen operation, no external device required
Interface USB
Dimensions (W×D×H) 450mm × 450mm × 450mm
Weight 30 kg
Power Supply 220–240V / 350W; 50/60Hz
Pre-installed Programs Multiple built-in programs; supports creating, deleting, and editing mode programs without manual optimization or programming; free program upgrades
Compatible Consumables Magnetic comb sleeves, 96-well deep-well plates
Compatible Reagents Rebexio Biotech provides two formats: pre-loaded 96-well plate kits and bottled reagents; compatible with various commercially available magnetic bead-based nucleic acid purification kits
Registration Status For research use only
Sample Types Purify nucleic acids from whole blood, viruses, animal/plant tissues and other biological samples; especially suitable for PCR product purification
Application Fields Clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microbial detection, food safety testing, molecular biology research, and other fields
Product feature
  • The unique instrument design, which utilizes moving magnetic beads instead of liquids, results in cleaner extractions and ensures consistent outcomes with every run;
  • Convenient: Easy to set up, operate, and customize to meet your lab's specific needs;
  • Versatile: Enables more applications than any other sample preparation instrument;
  • Supported: Dedicated to the support of these instruments.
