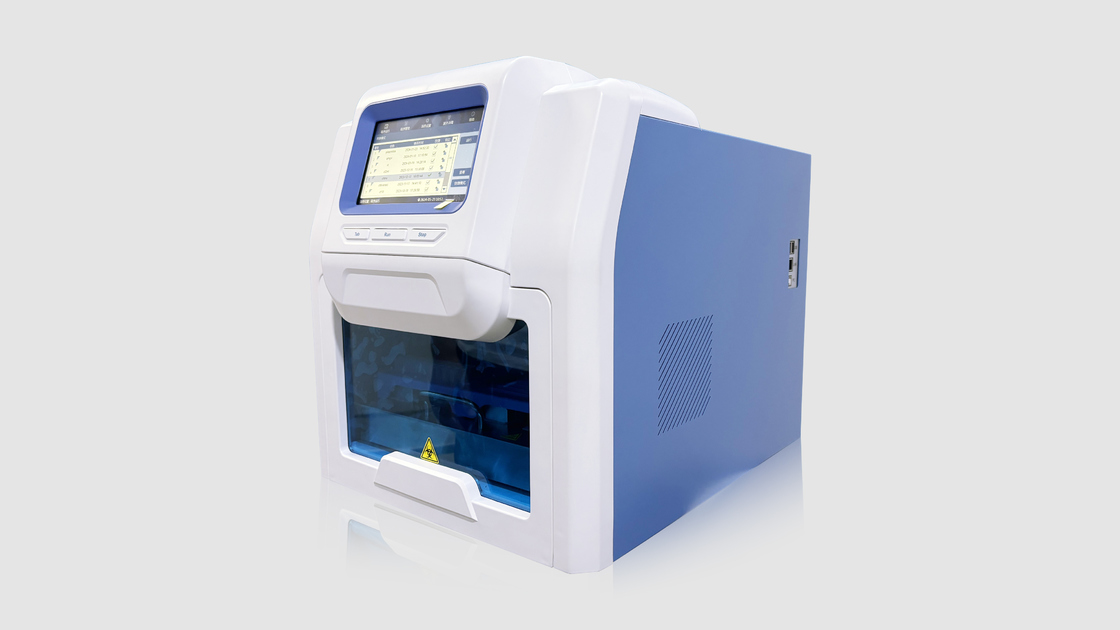

16-channel Fully Automatic Nucleic Acid Extractor

16-channel Fully Automatic Nucleic Acid Extractor
16-channel Fully Automatic Nucleic Acid Extractor

Large Image :  16-channel Fully Automatic Nucleic Acid Extractor

Product Details:
Place of Origin: China
Brand Name: Rebeads
Certification: ISO 9001, ISO 13485
Model Number: QJ-AUT-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: 1 set/Carton
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 20SETS/DAY
Contact Now Chat Now

16-channel Fully Automatic Nucleic Acid Extractor

description
Highlight:

16 Channel dna rna extraction system

,

Fully Automated Dna Rna Extraction System

,

high performance dna rna extraction machine

The 16-channel fully automatic nucleic acid extractor is a magnetic bead-based device for nucleic acid extraction and purification. According to the selected kit, it can isolate and purify nucleic acids from a variety of samples such as blood, animal and plant tissues, and cells.

Featuring fully automated operation, stable performance and high throughput, the instrument can purify 1–16 samples simultaneously to meet practical experimental needs.

Specifications
Item Specification
Product Name 16-Channel Fully Automatic Nucleic Acid Extractor
Model QJ-AUT-16
Sample Throughput 1–16 samples
Processing Time 9–40 min (depending on sample type and program settings)
Liquid Handling Volume 20μL–1200μL
Elution Volume 20–100μL
Well-to-Well Variation CV < 3%
Temperature Control Range Heating for lysis and elution (40℃ to +120℃)
Mixing Mode Vertical oscillation; adjustable speed/amplitude in multiple levels
Contamination Control Built-in UV disinfection module; fan exhaust
Operation Mode 7-inch color capacitive touch screen display
Noise Level 55 dBA (typical value)
Dimensions (W×D×H) 200mm × 260mm × 262mm
Weight 7.5 kg
Power Supply 100–240VAC, 45–65Hz
Customizable Programs Freely editable and storable, up to 120 programs
Compatible Consumables 96-well deep-well plates, 8-tip magnetic comb sleeves
Compatible Reagents Open platform, compatible with various magnetic bead-based extraction reagents; Rebexio Biotech provides two formats: pre-loaded 96-well plate kits and bottled reagents
Registration Status For research use only
Sample Types Rapid extraction of DNA and RNA from whole blood, body fluids, bacteria, viruses and other samples; especially suitable for on-site nucleic acid extraction of scattered samples
Application Fields Clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microbial detection, food safety testing, molecular biology research, and many other fields
Applications

Suitable for extracting DNA and RNA from a variety of samples, including whole blood, serum, plasma, saliva, swabs, cells, tissues, bacteria, and viruses.

Product feature

The unique instrument design, which utilizes moving magnetic beads instead of liquids, results in cleaner extractions and ensures consistent outcomes with every run；

Convenient: Easy to set up, operate, and customize to meet your lab's specific needs；

Versatile: Enables more applications than any other sample preparation instrument；

Supported: Dedicated to the support of these instruments.
