24-channel Multi-functional Purification System

24-channel Multi-functional Purification System
24-channel Multi-functional Purification System

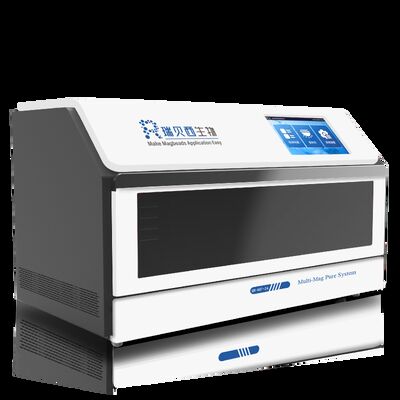

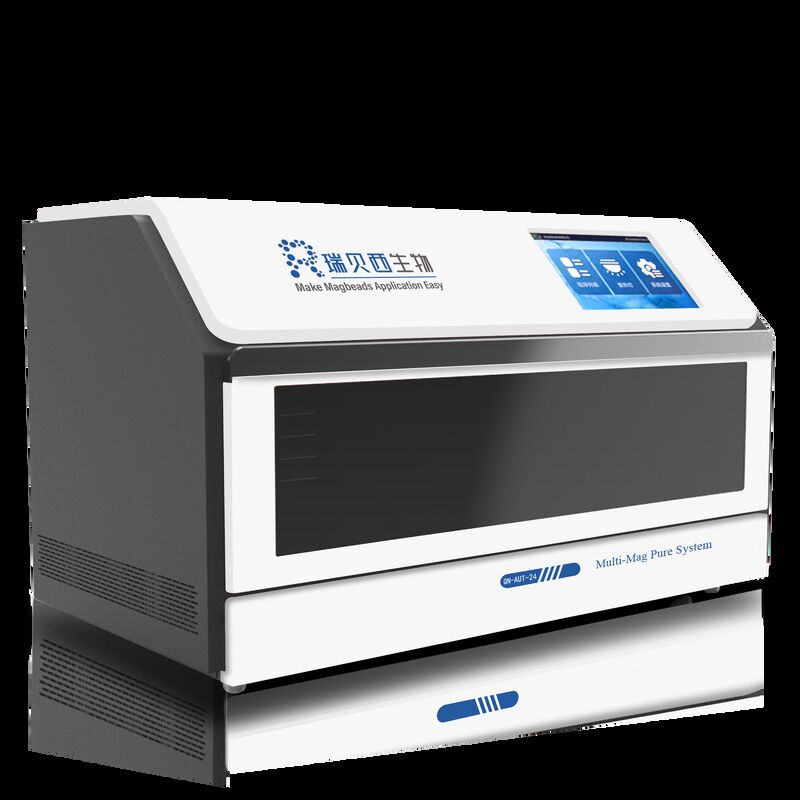

Large Image :  24-channel Multi-functional Purification System

Product Details:
Place of Origin: China
Brand Name: Rebeads
Certification: ISO 9001, ISO 13485
Model Number: QN-AUT-24
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: 1 set/Carton
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 20sets/day
Contact Now Chat Now

24-channel Multi-functional Purification System

description
Highlight:

16 Channel Automated Dna Extraction Machine

,

high efficiency Automated Dna Extraction Machine

,

high efficiency automated dna extraction system

24-channel multi-functional purification instrument is a magnetic bead-based device for nucleic acid extraction and purification. Paired with selected reagent kits, it can isolate and purify nucleic acids from various sources such as blood, animal and plant tissues, and cells.

Featuring fully automated operation, stable performance and high throughput, the system can purify up to 24 samples simultaneously to meet practical experimental requirements.

Technical details

Item Specification
Product Name 24-Channel Nucleic Acid Extractor
Model QN-AUT-24
Sample Throughput 1–24 samples
Processing Time 20–30 min (depending on sample type and program settings)
Liquid Handling Volume 20μL–10mL
Elution Volume > 100μL
Well-to-Well Variation CV < 3%
Magnetic Bead Recovery Rate > 99%
Mixing Mode Vertical oscillation with adjustable speed/amplitude in multiple levels
Contamination Control UV lamp, built-in UV disinfection module
Temperature Control Range 4°C~120°C; dual-channel temperature control system
Permanent Magnet Strength > 4300Gs
Dimensions (W × D × H) 870mm × 450mm × 502mm; 50kg
Operation Mode 10-inch touchscreen operation, no external device required
Power Supply 110~240V / 50, 60Hz
Customizable Programs Freely create, delete and edit programs; store up to 500+ programs
Compatible Consumables Magnetic comb sleeves, 24-well deep-well plates
Compatible Reagents Open platform, compatible with various magnetic bead-based extraction reagents; Rebexio Biotech provides two formats: pre-loaded 24-well plate kits and bottled reagents
Registration Status For research use only
Sample Types Multiple biological samples including blood, tissues, cells, body fluids, bacteria and viruses; antibody purification from antibody-containing samples such as plasma, ascites, and cell culture supernatant
Application Fields Antibody screening, molecular diagnostics, molecular biology research (microorganisms, animal/plant tissues), and many other fields
Product Features
  1. Unique Design: Adopts moving magnetic beads instead of liquid transfer, ensuring a cleaner extraction process.
  2. User-Friendly: Simple setup and operation, fully customizable to meet specific laboratory needs.
  3. Versatile Functionality: Supports a wider range of applications than any other sample preparation instrument.
  4. Professional Support: Dedicated technical support is provided for these instruments.
