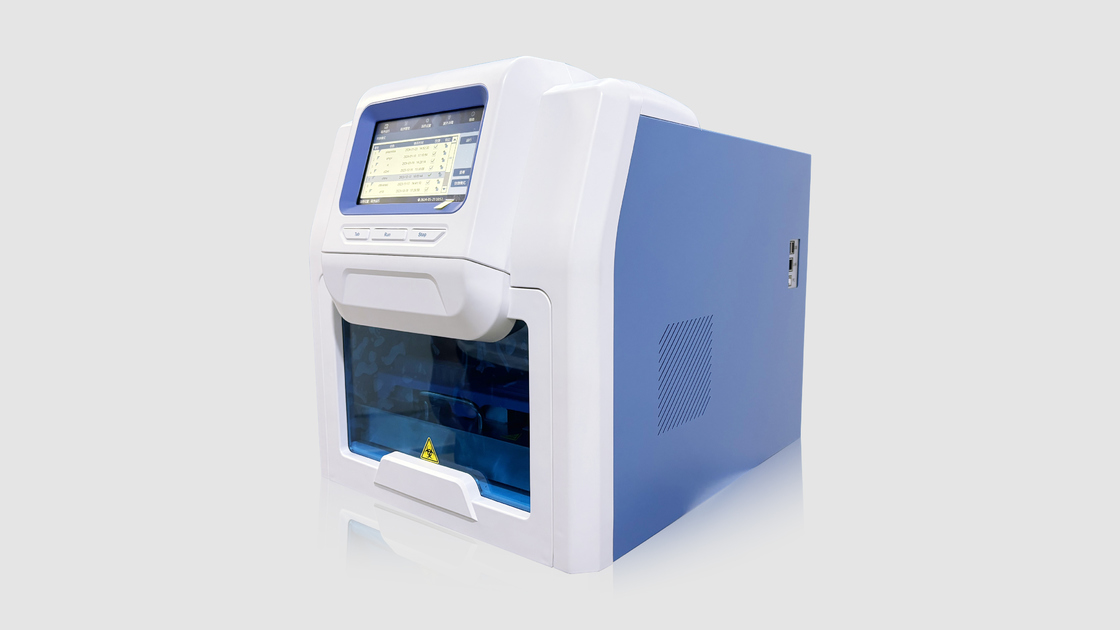

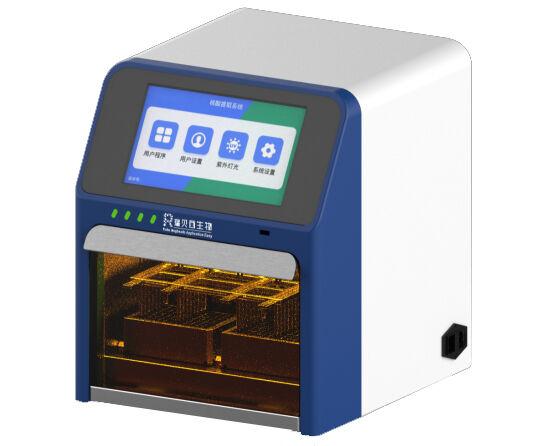

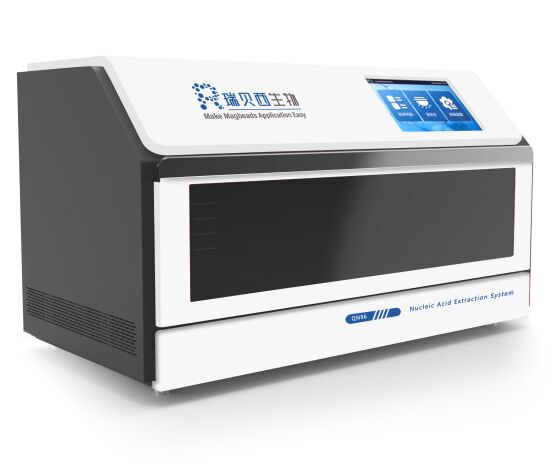

96-channel Fully Automatic Nucleic Acid Extractor

96-channel fully automatic nucleic acid extractor uses magnetic bead technology to extract and purify nucleic acids from blood, tissues, cells and more, matching any selected reagent kit.With full automation, consistent performance, and high throughput, it purifies up to 96 samples in a single run, adapting to your workflow needs.

1. Simultaneous nucleic acid extraction for up to 96 samples per run;
2. Suitable for DNA/RNA extraction from various sample types.

   Item	Specification
   Product Name	96-Channel Nucleic Acid Extractor
   Model	QN-AUT-96
   Sample Throughput	1–96 samples
   Processing Time	20–30 min (depending on the project type)
   Liquid Handling Volume	20–1000 μL
   Elution Volume	20–100 μL
   Well-to-Well Variation	CV < 3%
   Magnetic Bead Recovery Rate	> 98%
   Mixing Mode	Vertical oscillation with adjustable speed/amplitude in multiple levels
   Contamination Control	UV lamp, built-in UV disinfection module
   Temperature Control Range	0–120℃; dual-channel temperature control system
   Permanent Magnet Column	4000 ~ 6000 Gs
   Dimensions (W×D×H)	870mm × 450mm × 502mm; 50 kg
   Operation Mode	10-inch touchscreen operation, no external device required
   Power Supply	110~240V / 50, 60Hz
   Customizable Programs	Freely create, delete and edit programs; store up to 500+ programs
   Compatible Consumables	Magnetic comb sleeves, 96-well deep-well plates
   Compatible Reagents	Open platform, compatible with various magnetic bead-based extraction reagents; Rebexio Biotech provides two formats: pre-loaded 96-well plate kits and bottled reagents
   Registration Status	For research use only
   Sample Types	Various biological samples including blood, tissues, cells, body fluids, bacteria and viruses
   Application Fields	Molecular diagnostics, microbiology (bacteria, viruses, etc.), animal/plant tissues, molecular biology research, and many other fields

1. Unique Instrument Design: Uses moving magnetic beads instead of liquid transfer, ensuring a cleaner extraction process.
2. User-Friendly: Simple setup and operation, customizable to meet specific laboratory needs.
3. Versatile Functionality: Supports more application scenarios than any other sample preparation instrument.
4. Professional Support: Dedicated support is provided for these instruments.
